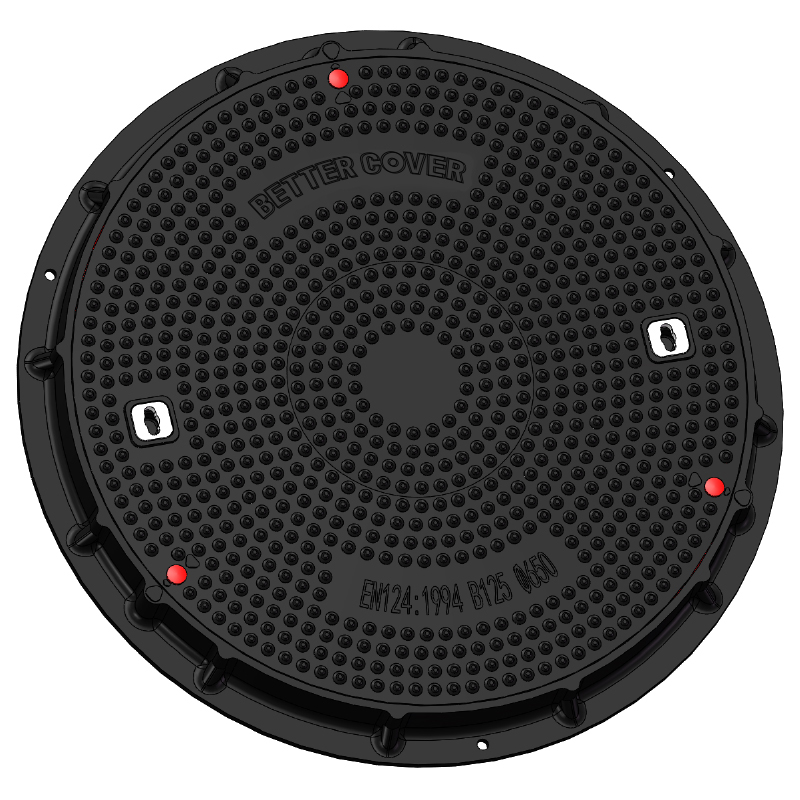

∅650mm B125-Street Sewer Hole Cove

BETTERCOVER B125 street sewer composite manhole covers are design with anti-theft in mind alongside providing optimum strength whilst maximize the available drainage area.it is a robust choice in many cases where light vehicular, slow moving traffic is present and come in a variety of types, with different sizes, shapes, weight classes. Used for backyard projects, outdoor projects, backyard patio, garden projects，domestic driveway thresholds for family cars, vans and 4x4s.

Sample: Set / 1 Set (Min. Order)
Production time:
Quantity (set) 1-100 >100
Day 5 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

Product name: SMC FRP Composite ∅650mm B125 Lockable Sewer Manhole Cover And Frame
Size:∅800X60mm
Clear open: ∅650mm
Application: Sidewalks, non motorized lanes, car parking lots and underground parking lots
Function: Sewer, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Color: Black Color
Product Structure: Manhole cover and frame, drainage handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 26Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, The aluminum sleeve of removable drainage handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:1994
Load Ratings: B125(12.5TON)

Product details

Function	Sewer, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color	Black Color

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	40	708	60	B125
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	800	650	&emsp;	26

Application

Sidewalks
Non motorized lanes
Car parking lots
Underground parking lots
Sewer

A155 Tonnes
Areas which can only be used by pedestrians and pedal cyclists.
B12512.5 Tonnes
Footways, pedestrian areas and comparable areas, car parks, or car parking decks.
C25025 Tonnes
For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
D40040 Tonnes
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.

Constantly strive for perfection

●Support Customization Of Products With Customer Logo

●Screw locking mechanism

●Non-slip

The upper surface of the manhole cover is designed with many round bumps with a height greater than 4mm, which increases the friction area on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.

●The aluminum sleeve of removable sealing handle adopts aluminum alloy

●Frame

●Tool

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Factory Overview

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
