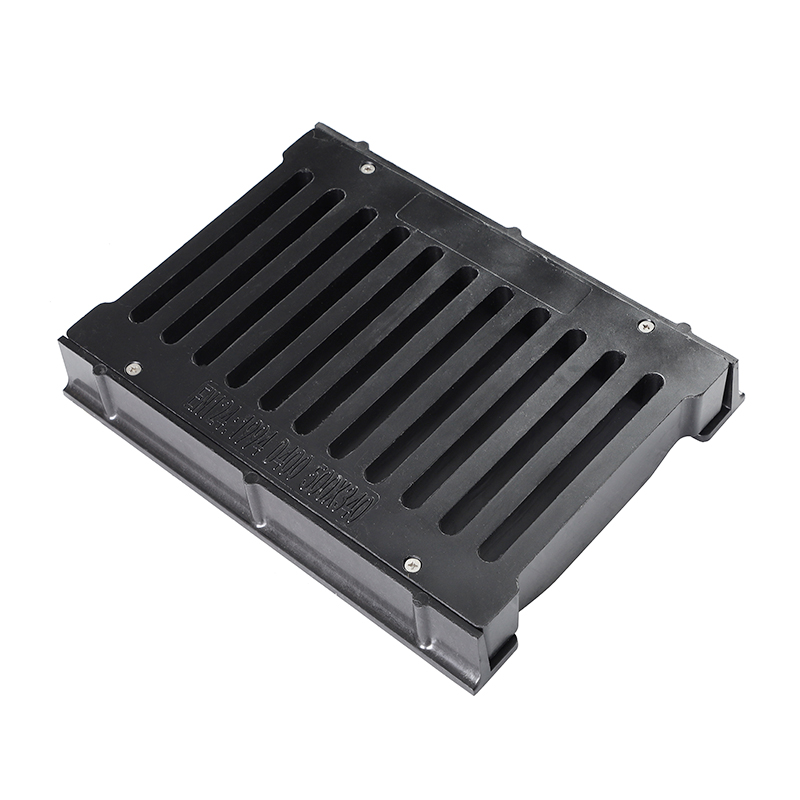

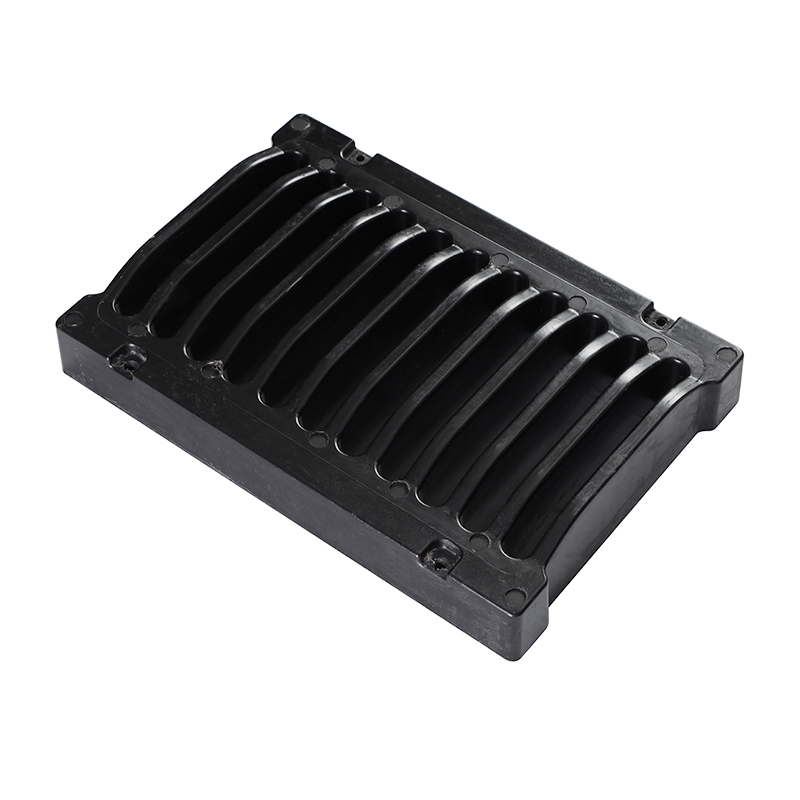

500X340X63mm(19.7"X13.4"X2.5") C250-Drainage Grates cover

Use the drain grate (also known as a drain cover) to drain moderate flows from lawns, landscaped areas, patios, walkways, and under downs

Sample: Set / 1 Set (Min. Order)
Production time:
Quantity (set) 1-100 >100
Day 5 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

Product name: Gully drain cover are made of SMC FRP composite material
Size: 500X340X60mm(19.7"X13.4"X2.4")
Clear open: 500X250mm (19.7"X9.9")
Application: Drainage ditch of gas station, drainage ditch in the area where only light motor vehicles or small vehicles are driving
Function: Drainage, anti-skid, anti-static, corrosion-resistant and aging resistant
Color: Black Color

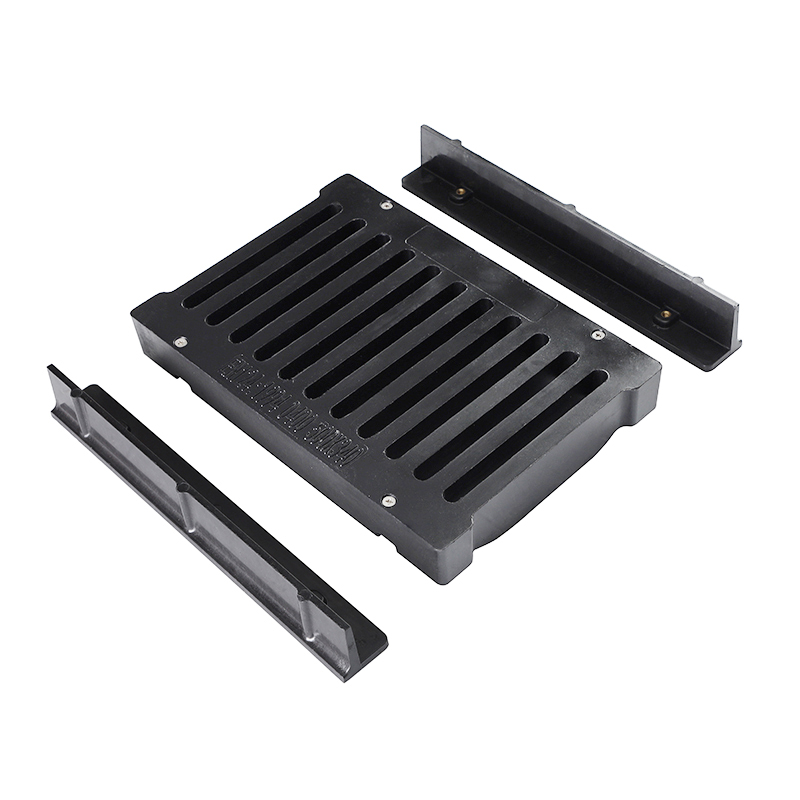

Product Structure: Manhole cover and frame, removable side sealing structure, removable sealing handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 9Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, the removable side sealing structure adopts corrosion-resistant EPDM, the aluminum sleeve of removable sealing handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:2014
Load Ratings:C250(25TON)

Product details

Function	Drainage, anti-skid, anti-static, corrosion-resistant and aging resistant
Product Color	Black Color

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	63	500X340		C250
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
		500X250	&emsp;	9

If the product is used in an unsealed environment for drainage or sewage ,the handle hole of the manhole cover is a drainage handle aluminum sleeve ,and removable rubber seal is not installed on the manhole Fram

Application

Drainage ditch of gas station
Drainage
Drainage ditch in the area where only light motor vehicles or small vehicles are driving

Extra wide 1080mm gully grating manhole cover

Size: 355X1080X120mm
Clear open: 1000mm
Material：SMC composite
Load Ratings: C250 (25TON)
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:2015

<span sf="" pro="" display",="" "sf="" icons",="" pingfangsc-regular,="" arial,="" helvetica,="" sans-serif;white-space:normal;background-color:#ffffff;"="" style="padding: 0px; margin: 0px; box-sizing: border-box; color: rgb(51, 51, 51); font-family: " sans-serif;="" white-space:="" normal;="" background-color:="" rgb(255,="" 255,="" 255);"="">the product can be used at - 50 ~ 160℃,Service life exceeds 30 years.

A155 Tonnes
Areas which can only be used by pedestrians and pedal cyclists.
B12512.5 Tonnes
Footways, pedestrian areas and comparable areas, car parks, or car parking decks.
C25025 Tonnes
For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
D40040 Tonnes
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.

Constantly strive for perfection

●Support Customization Of Products With Customer Logo

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Factory Overview

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
